Message Body Types

Available as of Camel 4.24

Every step of a route needs some kinds of message body and leaves one. The file consumer gives the file it read, unmarshal: json turns text into a Map or a List, and the file producer writes text, bytes, a stream or a file, but not a Map. When the body one step leaves is not a body the next step can take, the route fails, but only when a message gets there.

Camel describes these bodies in its catalog, as the body types of each component, data format, language and EIP. They say what each step needs and what it leaves, with its default options and with the options that change it. Tools read them to tell before the route runs what the body is at each step, and where it does not fit.

The body types help you:

  • Find a route that cannot work before it runs. The YAML validator follows the body through the steps of each route, and reports a step that cannot take the body it gets, with a hint of what to add.

  • Know what a step gives without reading its code. The documentation page of each component, data format, language and EIP has a Message Body section, and the Camel CLI and its MCP server show the same.

  • Write routes with AI. An AI assistant that reads the body types writes steps that fit together, such as a marshal before a step that sends text.

  • See what the body was when the routes ran. With the message history on, Camel records the body each step has been reached with. A step reached with bodies of more than one kind is a part of the route that needs attention.

How it works, in a picture

Each step has two body types: the bodies it needs, and the body it leaves. A tool lines them up along a route, step by step, before the route runs:

  from: file:inbox
      │   file          the file consumer gives the file it read
      ▼
  unmarshal: json       needs text, bytes, a stream or a file       ✓
      │   Map or List   the parsed JSON
      ▼
  log                   needs any body                              ✓
      │   Map or List   log leaves the body as it was
      ▼
  to: file:outbox       needs text, bytes, a stream or a file       ✗
                        ⚠ the body is a Map or a List: add marshal: json before this step

The same body types tell what the body is where a route is not wrong: after marshal: json the body is JSON text again, which the file producer writes.

Carriers: the kinds of body

A body type names the carriers of the body: the kinds of Java object it can be in. They are coarse on purpose: a carrier that is right is better than a precise Java type that is wrong.

Carrier The body is Kind at runtime

null

No body.

null

text

A String.

payload

bytes

A byte[].

payload

stream

An InputStream, a Reader, or the stream cache of Camel.

payload

file

A file: the GenericFile of the file consumers, a java.io.File or a Path.

payload

value

A single value: a number, a boolean or an enum.

payload

map

A java.util.Map, such as a JSON object parsed, or a row of a query.

data

pojo

Another Java object, such as a DOM Document or a class a payload is unmarshalled into.

data

list

A List, another Collection or an array, such as a JSON array parsed, or the rows of a query.

collection

iterator

An Iterator, read once, element by element, with no size and no index.

collection

Three more words have a meaning of their own:

  • unchanged — the body after the step is the body before it, such as after a log or a to: kafka.

  • any — the step takes any body, such as a setHeader. Only for the bodies a step needs.

  • unknown — the body depends on what the other system sends, or on a class the user configures. Tools must not guess it. Only for the body after a step.

The kinds are what Camel records at runtime (see Message History): a step reached with bodies of one kind, such as String and byte[], is dynamic but fine; a step reached with a payload for some messages and data for others needs attention.

Sides: what a step needs and what it leaves

The body types of a model are a set of sides. A side that is not listed is not known.

Model Side The body

Component

consumerOut

The body of the message the consumer creates: what a from gives the route.

consumerReply

The bodies a consumer that answers the caller can reply with: what the route can end with.

producerIn

The bodies the producer can send or write: what a to needs.

producerOut

The body after the producer.

Data format

marshalIn

The bodies the data format can marshal.

marshalOut

The body after marshal.

unmarshalIn

The bodies the data format can unmarshal.

unmarshalOut

The body after unmarshal.

Language

expressionIn

The bodies the expressions of the language can read.

expressionOut

The result of an expression.

EIP

eipIn

The bodies the EIP needs, such as text for tokenizer.

eipOut

The body after the EIP.

eipSteps

The body the steps of the EIP start with, such as each part for split.

Examples

A step that cannot take the body

This route reads JSON files, parses them, and writes them to another directory:

- route:
    from:
      uri: file:inbox
      steps:
        - unmarshal:
            json: {}
        - to:
            uri: file:outbox

The file consumer gives the file (consumerOut is file), unmarshal: json leaves a Map or a List (unmarshalOut), and the file producer needs text, bytes, a stream or a file (producerIn). So the validator reports the to:

to: file needs the body as text, bytes, a stream or a file, but the body here is parsed data (a Map or a List), not
text - unmarshal: json turns the text into data: add marshal: json before this step

The source editor of the Camel CLI checks a file when you save it, and does not save a YAML file with a problem. The to line is marked, and the Error panel says what is wrong, with Shift+F8 to fix it with AI (the notes on the right were added for this page):

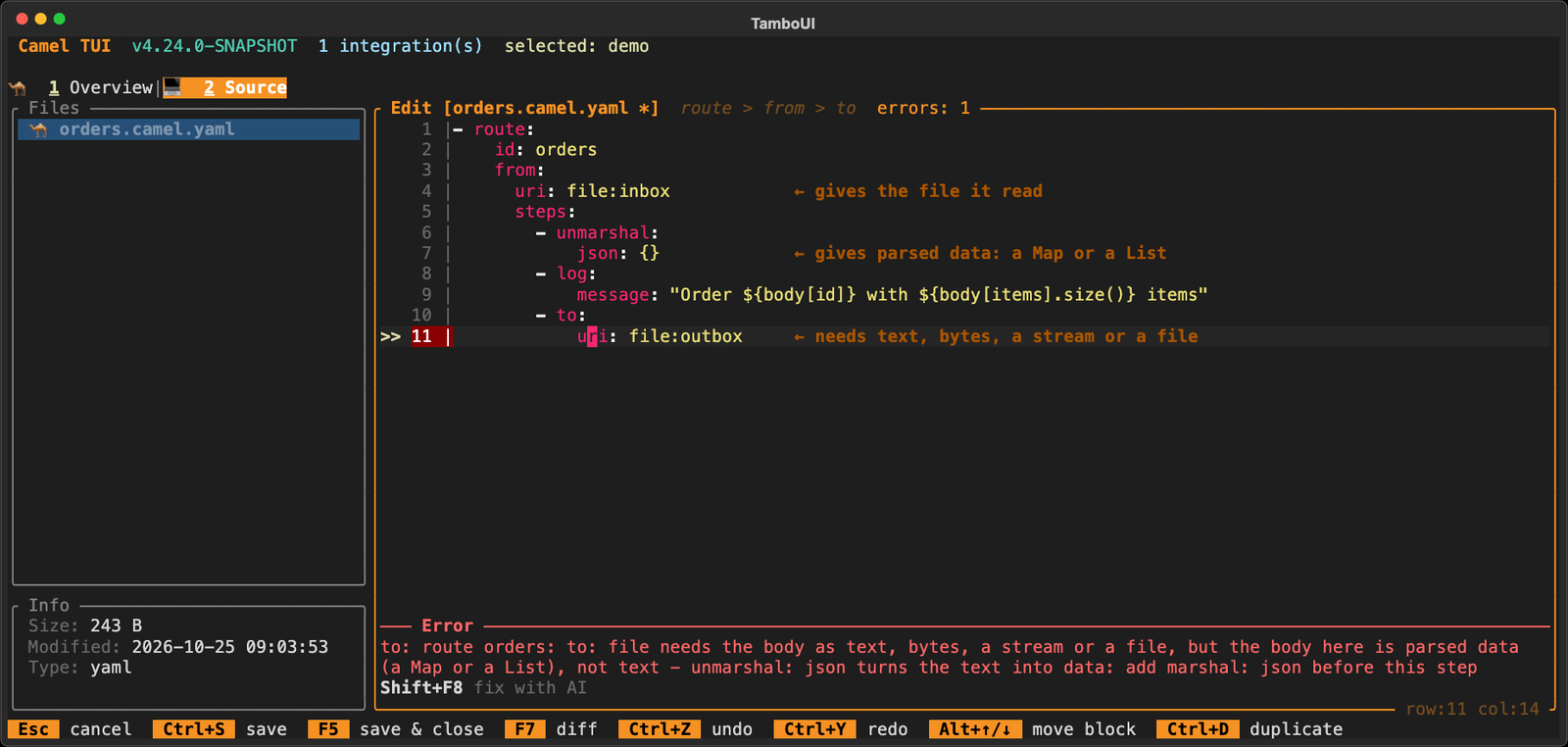

The orders route in the source editor of the Camel CLI: the to line is marked

With a marshal before it, the body is JSON text again, which the file producer writes:

- route:
    from:
      uri: file:inbox
      steps:
        - unmarshal:
            json: {}
        - marshal:
            json: {}
        - to:
            uri: file:outbox

Options change the body

The body after a step can depend on its options. The xslt producer leaves the result as text, unless its output option says otherwise:

"producerOut": {
  "carriers": [ "text" ], "javaType": "java.lang.String", "dependsOn": [ "resultHandlerFactory" ],
  "byOption": [
    { "option": "output", "value": "bytes", "carriers": [ "bytes" ], "javaType": "byte[]" },
    { "option": "output", "value": "DOM", "carriers": [ "pojo" ], "javaType": "org.w3c.dom.Document" },
    { "option": "output", "value": "file", "carriers": [ "file" ], "javaType": "java.io.File" } ],
  "description": "The result of the transformation" }

With output=bytes the body is a byte[]. With a resultHandlerFactory the factory decides the body, which the catalog cannot know, so it is not known.

An option that names the class of the body

Some options name the class the result is converted to: the resultType of a language, the unmarshalType of a JSON data format, the type of convertBodyTo, or the outputClass of sql for one row. When such an option is set, the body is an object of that class, or null:

- route:
    from:
      uri: direct:order
      steps:
        - setBody:
            simple:
              expression: "${header.quantity}"
              resultType: java.lang.Integer
        - to:
            uri: sql:select * from orders where id = :#id
            parameters:
              outputType: SelectOne
              outputClass: com.acme.Order

setBody leaves the result of its expression, and with resultType that is an Integer, a value. The sql producer leaves a List of rows by default, and with outputType=SelectOne and outputClass one com.acme.Order, or null when there is no row.

EIPs

The body after an EIP is often the body of something else: marshal leaves what its data format writes, to what the producer of its endpoint leaves, and setBody the result of its expression. The catalog says so with from, instead of copying the body types of every data format, component and language:

"eipOut": { "from": "marshalOut", "dependsOn": [ "variableReceive" ],
  "description": "What the data format writes. With variableReceive the result goes into the variable, and the body stays as it was" }

An EIP with steps of its own also says what they start with. The steps of a split start with each part, and after it the body is as it was before the split:

"eipOut": { "carriers": [ "unchanged" ], "dependsOn": [ "aggregationStrategy" ],
  "description": "The body as it was before the split, unless an aggregationStrategy is set" },
"eipSteps": { "carriers": [ "unknown" ],
  "description": "Each part of what the expression gives, such as an element of a List or a line of text" }

Tooling

Documentation

The page of each component, data format, language and EIP has a Message Body section with a row per side, which is generated from the catalog.

Camel CLI and its MCP server

camel catalog doc prints the same table for a component, data format, language or EIP, such as camel catalog doc xslt or camel catalog doc eip:split. The camel_catalog_doc tool of the MCP server gives each side as a line of text, so an AI assistant reads them with the options:

text (java.lang.String). The result of the transformation. With output=bytes: bytes (byte[]); output=DOM: pojo
(org.w3c.dom.Document); output=file: file (java.io.File). Not known when resultHandlerFactory is set

YAML validator

camel validate source follows the body through the steps of each route with the body types, and reports a step that cannot take the body it gets (see Validation). Where the catalog does not know the body, such as after an HTTP consumer, it says nothing, unless a running integration has shown what the body is.

Asking an AI assistant

An AI assistant with the MCP server of the Camel CLI can answer "is something wrong with my route?". It validates the file with the camel_validate_source tool, which follows the body with the body types:

You:        Is something wrong with my route in orders.camel.yaml? The files never show up in outbox.

Assistant:  (calls camel_validate_source on orders.camel.yaml)
            {"valid": false, "errors": ["Line 8: to: to: file needs the body as text, bytes, a stream or a file,
             but the body here is parsed data (a Map or a List), not text - unmarshal: json turns the text into
             data: add marshal: json before this step"]}

            Yes. unmarshal: json turns each file into a Map (or a List for a JSON array), and the file producer
            cannot write a Map, so the exchange fails at the to step and nothing reaches outbox. Add
            marshal: json before the to to write the JSON again. If the route only moves the files, remove the
            unmarshal instead, as the file consumer gives the file as it is.

The assistant can also read the body types of a step with camel_catalog_doc, such as what unmarshal: json leaves with useList, and it validates a route before it writes the file. In the source editor of the Camel CLI, Shift+F8 asks the AI of the Camel CLI to fix the problem of a line.

In a visual route editor

As the body types are in the catalog, a visual route editor can show them too: the body on each arrow, and a warning on the step that cannot take it, with the step to add. An illustration of the route above:

An illustration of a route diagram: from file

At runtime

With the message history on, such as with camel run --dev, Camel records the types and kinds of the bodies each step has been reached with:

  • Message History explains the kinds, the BodyTypeRegistry, the body-type dev console and the JMX attributes.

  • camel cmd route-structure shows them per step (see Diagnostics), as do the diagram and the source editor of the Camel CLI.

  • The route coverage report of the Camel Report Maven Plugin shows the body types the tests reached each step with, and can fail the build on a step reached with bodies of more than one kind.

For example, the route coverage report of tests that sent two messages, where only one was parsed before the to:

mvn camel-report:route-coverage -Dcamel.bodyTypes=true
  Line #       Count    Route          Body types
  ------       -----    -----          ----------
       3           2    from
       4           2      unmarshal    String
       7           2      to           LinkedHashMap | String (data and payload)

The to has been reached with a LinkedHashMap (data) by one message and a String (a payload) by the other, so it works for some messages only. The body types in the catalog tell this before the route runs; the ones recorded at runtime show what the messages really brought.

Declaring body types

A component declares its body types with the @BodyTypes annotation on its endpoint class, a data format and a language on their class, and an EIP on its model class in camel-core-model. That is also where the EIPs that other modules implement are declared, such as circuitBreaker. A subclass does not have the body types of its superclass, as it may change the body:

@BodyTypes(consumerOut = @BodyType(value = Carrier.FILE, description = "The file as read ..."),
           producerIn = @BodyType({ Carrier.TEXT, Carrier.BYTES, Carrier.STREAM, Carrier.FILE }),
           producerOut = @BodyType(Carrier.UNCHANGED))
@UriEndpoint(firstVersion = "1.0.0", scheme = "file", ...)
public class FileEndpoint extends GenericFileEndpoint<File> {

The values come from the code that sets the body. The build checks that:

  • each side belongs to the kind of model; a consumer-only component has no producer sides;

  • the options a side names exist, and a value of an option is one the option can have;

  • unchanged and unknown are only on the body after a step, and any only on what a step needs;

  • from names a side the body can come from, and a side with from has no carriers of its own;

  • a javaTypeOption is an option of the body after a step that the side does not also depend on.

The runtime body types the message history records are checked against them in tests, such as for the EIPs of core.

Reference: the JSON of the body types

This section is for the tools, and the AI assistants, that read the catalog.

The JSON of a component, data format, language or EIP in the catalog has a bodyTypes object next to its options, with an object per side. Each side has these fields; a field that does not apply is left out:

Field Type Meaning

carriers

array of strings

The carriers of the body: one, or several when the body can be any of them. Left out for a side with from.

javaType

string

The Java type of the body, when it is always of this type.

format

string

The format of the payload, when it is always the same: json, xml, csv, yaml, text or binary.

dependsOn

array of strings

The options the body depends on. The side holds while they keep their default values. When the step sets one, only a byOption entry for that value says the body; without one it is not known.

byOption

array of objects

The body for a value of an option: option, value, carriers, and optionally javaType and javaTypeOption.

javaTypeOption

string

The option that names the class of the body, such as resultType. When the step sets it, the body is an object of that class, or null.

from

string

For an EIP, the side of another model the body is: expressionIn, expressionOut (the language of its expression), marshalIn, marshalOut, unmarshalIn, unmarshalOut (its data format), producerIn, producerOut (its endpoint as a producer), consumerOut (its endpoint as a consumer), or steps (what its own steps end with).

description

string

What to know about the body, in a sentence.

Reading a side for a step

To know the body a step leaves, or the bodies it needs, read its side with the options the step sets, in this order:

  1. No side: not known.

  2. A side with from: when the step sets an option of dependsOn, not known. Otherwise, read the side from names on the model the step uses (the language of its expression, its data format or its endpoint), with the options of that model. steps is the body the steps of the EIP end with.

  3. An option the side names whose value is not known before the route runs (a {{placeholder}} or a ${expression}), or an option the step does not set but that can be set elsewhere, such as on the component: not known.

  4. An option of dependsOn the step sets: the byOption entry for that value says the body. When it has a javaTypeOption the step sets, the body is an object of that class. Without such an entry: not known.

  5. The javaTypeOption of the side, when the step sets it: an object of the class it names, or null. It wins over the byOption entries of other options.

  6. The byOption entries for the values the step sets: their carriers (or the class of their javaTypeOption). When two of them say different bodies: not known.

  7. Otherwise: the carriers of the side. unknown is not known, and unchanged is the body before the step.

The values of an option compare in any case, and in any style of an enum constant, as Camel takes them: convert-to-json, convertToJson and CONVERT_TO_JSON are one value.

The carrier of a class that a javaTypeOption names follows the class: String is text, byte[] is bytes, an InputStream or a Reader is stream, a File or a Path is file, a number, a boolean or a character is value, a Map is map, a Collection or an array is list, an Iterator is iterator, Object is unknown, and any other class is pojo. The short names Camel takes, such as String and int, count too.

Java API

The models of camel-catalog have the body types, and BodyTypeResolver of camel-tooling-model reads a side for the options of a step, by the rule above. The YAML validator uses it:

CamelCatalog catalog = new DefaultCamelCatalog();

BodyTypeModel out = catalog.componentModel("xslt").getBodyType(BodyTypeModel.PRODUCER_OUT);
out.getCarriers();      // [text]
out.getJavaType();      // java.lang.String

BodyTypeResolver.Resolved bytes = BodyTypeResolver.resolve(out, Map.of("output", "bytes"), Set.of());
bytes.carriers();       // [bytes]

BodyTypeModel.carrierOf("java.util.Map");   // map
